Case Study - Removal of Circular Steel Pile within Sewer

Project –  Removal of a 600mm steel pile from a main sewer
Equipment Used – Prokasro 4.0 unit
Pipe diameter – 600mm with cutter lowered vertically
This unprecedented use of our equipment prevented the eventual collapse of a main sewer

The Problem

Steel Pile Cutting  - An ongoing problem for several years, a 600mm steel pile had pierced a main sewer by approximately 70%. Numerous suggestions had been made to remove the pile to no avail. The proximity of the pile to a railway line, along with low-hanging overhead cables, meant excavating was not an option.

The Solution

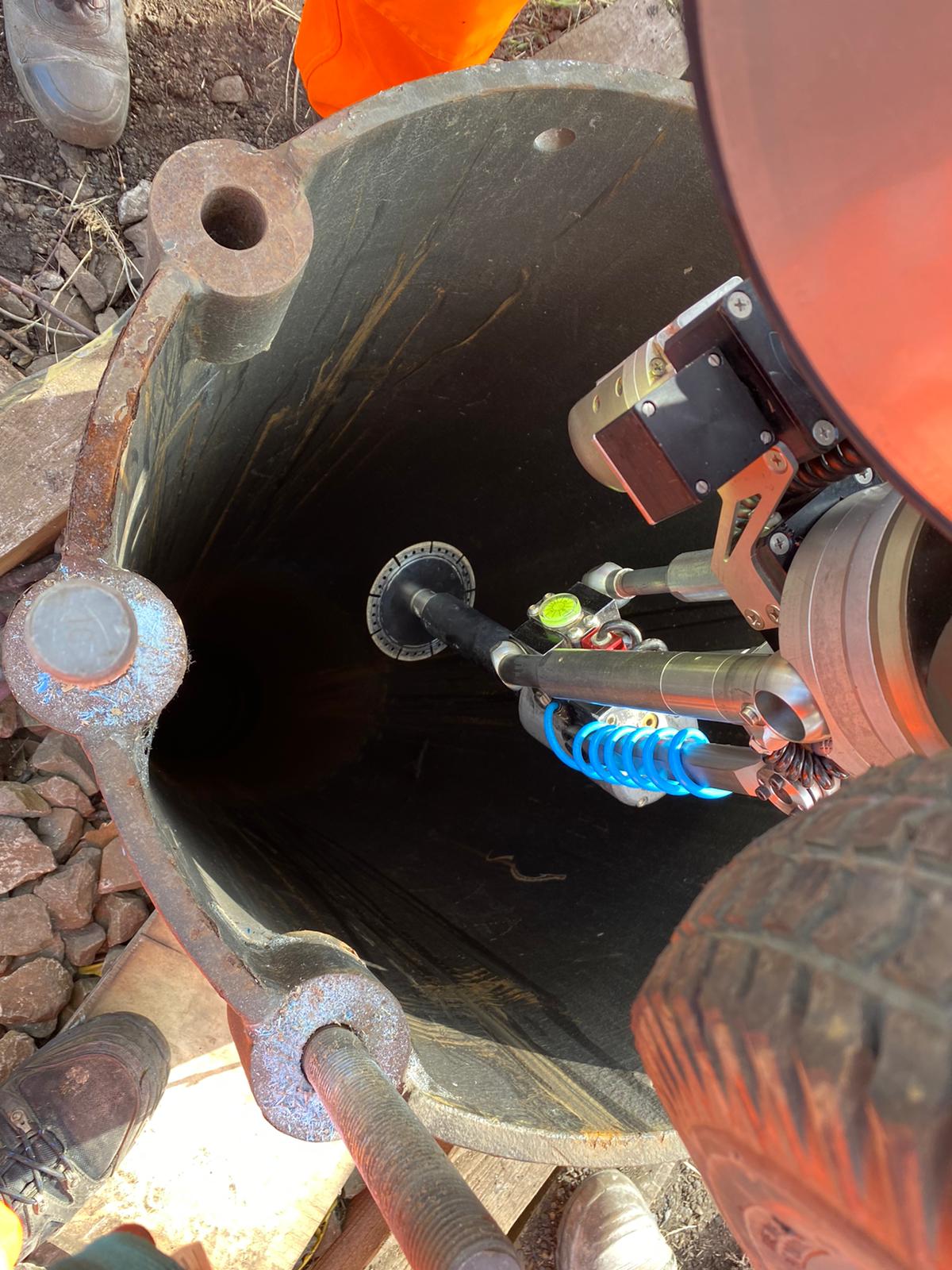

Alongside our client, we concluded that the best option would be to lower our cutter vertically down the pile and cut around the circumference. This posed a number of challenges including how to secure the robot in place, what kind of cutting blades to use and how to remove the pile once cut. After extensive testing, we devised the best solution for our client and began works. Our 4th cutting axis meant we could angle the blade almost perpendicular to the walls of the pile.

The Outcome

With the pile being almost 30mm thick, it took a lot of persistence from our equipment and our operatives, but the works were a success! Once the pile had been cut and removed, we blunted the edges and assisted with the removal of the off cut. The main sewer was then relined by our client to prevent any further deterioration and restore full flow.

Investors in technology - Now with
Streicher CL50 and CL80 Drain Cutters

Robotic cutting using the CL50 and CL80 are state of the art ‘climbing robots’ that enable us to cut at elevated locations and negotiate difficult bends, making previously inaccessible obstructions accessible. These units are specifically designed for smaller diameter pipework, 75mm up to 225mm, and can be made fully portable both internally and externally.
Datomic Remote Cutting robots have the solution, including:

* Removal of concrete / reinforced concrete
* Removal of steel reinforced
* Precisely re-open lateral connections
* Pipes from 75mm up to 1000mm

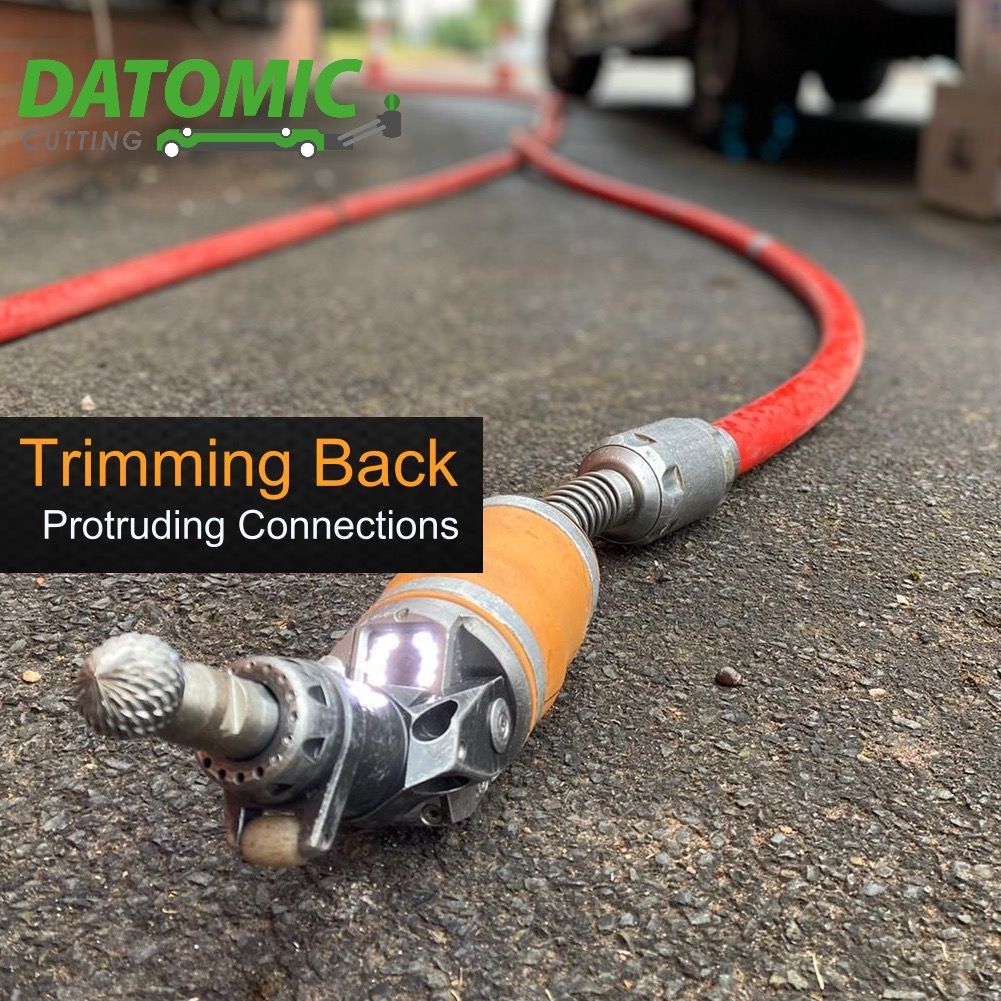

* Removal of intruding connections
* Rapid response 24/7 for concrete cutting.
* Nationwide Response team for concrete removal
